Mitsubishi FA10S, 2012, AWT, 4-AXIS, M700 CNC WIRE EDM MACHINES

Price on Request

Make:: Mitsubishi

Model:: FA10S, 2012, AWT, 4-AXIS, M700 CNC

Year:: 2012

Ref #:: 179500

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

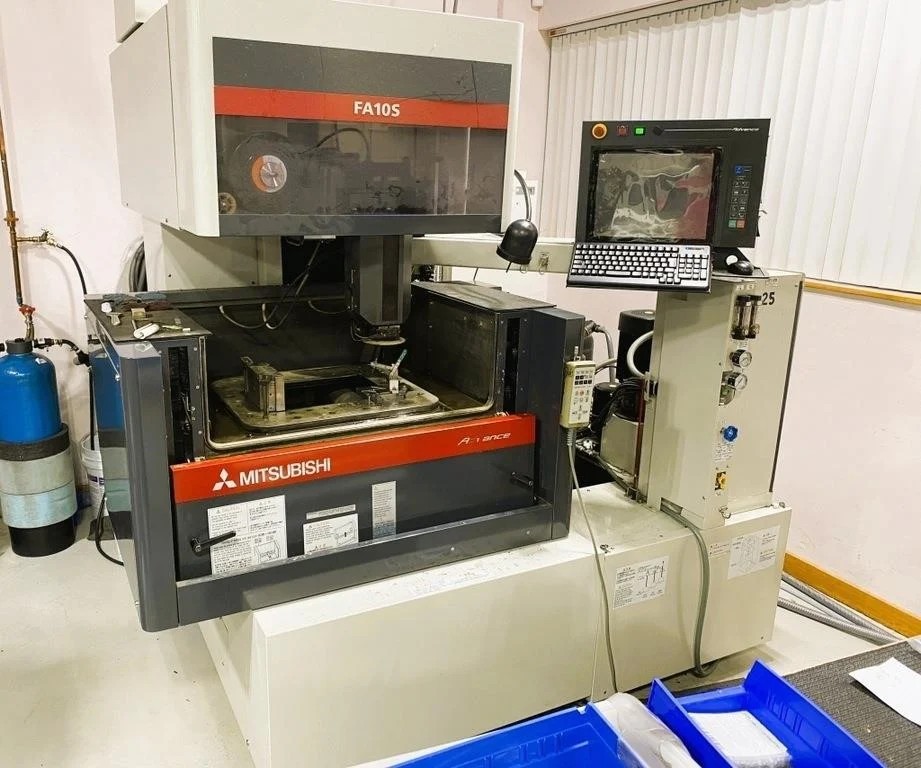

            Mitsubishi FA CNC Wire EDM,
                 4-AXIS (X/Y/UV)

            S/N: 57D1A124    NEW: 2012



Specifications:

X Travel .................. 13.8"
Y Travel .................. 9.8"
Z Travel .................. 8.7"

Machine Travels (U x V) ... 1.3" x 1.3"
Max Taper Angle ........... 15 Deg. @ 3.9"
Wire Diameter ............. 0.004" to 0.012"
Auto Threading (Yes/No .... Yes

Max Workpiece Dimensions .. 31.5" x 23.6" x 8.5"
Max Workpiece Weight ...... 1,100 lbs
Worktank Capacity, Fluid .. 116 Gals.
Table Dimensions .......... 23.2" x 20.2"

Equipped with:

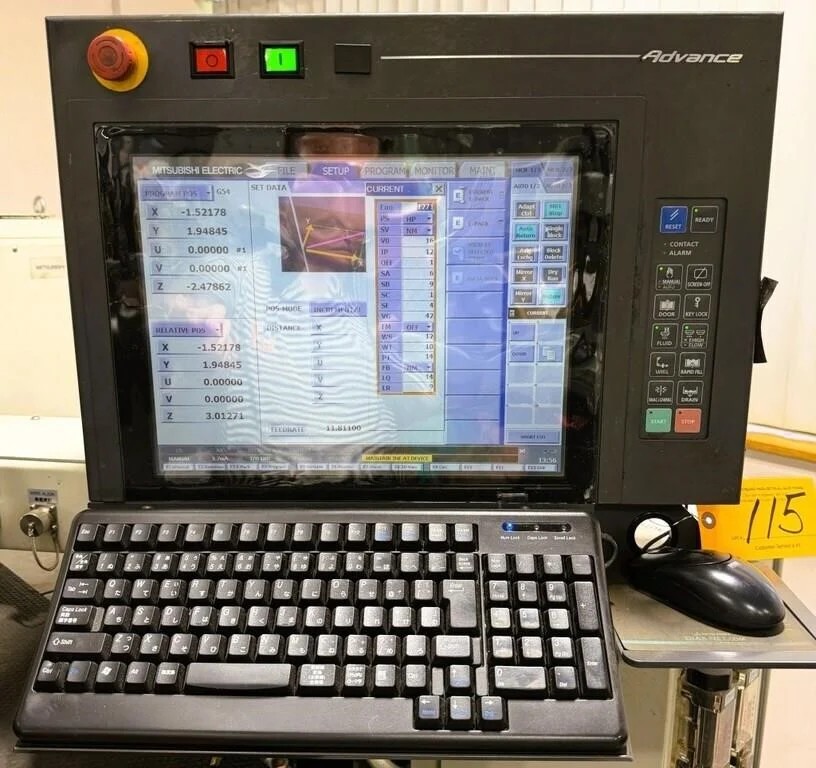

MITSUBISHI ADVANCE M700 PLUS CNC Control
3D Advance
15" LCD
Automatic Wire Threading (AT2)
Mitsubishi Unit Cooler
Wired for 3/60/220 Volts, 13.5 KVA



Dimensions:......... 82"W x 97"D x "H
                 See Brochure (below) for Outline
                      and Layout Drawings
Weight:.................... 5,000 lbs

Special Note:
Please see the following BROCHURE below,
 it is very detailed.


 https://dl.mitsubishielectric.com/dl/fa/document/catalog/edm/k-kl2-0-c0069/K-KL2-0-C0069-B.pdf


** FOB Our Harrison, NJ warehouse **
** De-Installed prior to shipment, by our staff **
** Exceptional Condition & Appearance **
