Royal Master TG12X3, REBUILT BY RMG IN 2015, AUTO CYCLE, CENTERLESS GRINDERS

Price on Request

Make:: Royal Master

Model:: TG12X3, REBUILT BY RMG IN 2015, AUTO CYCLE,

Year:: 2015

Ref #:: 164169

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

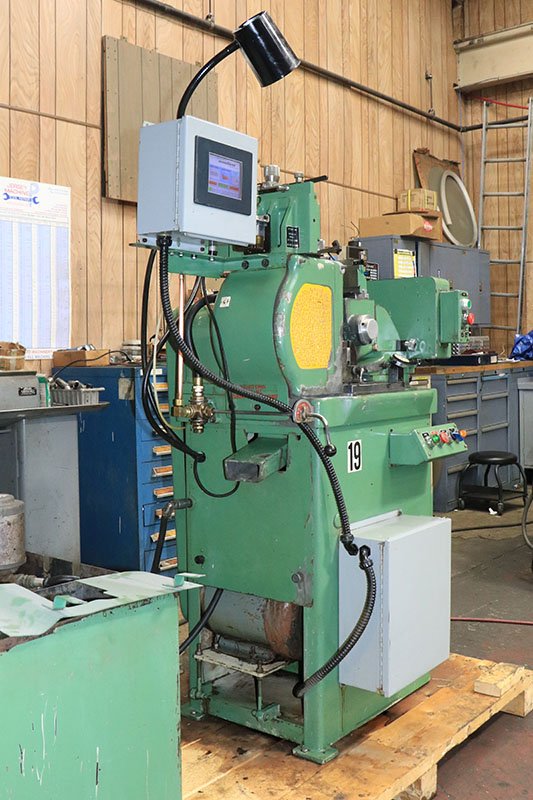

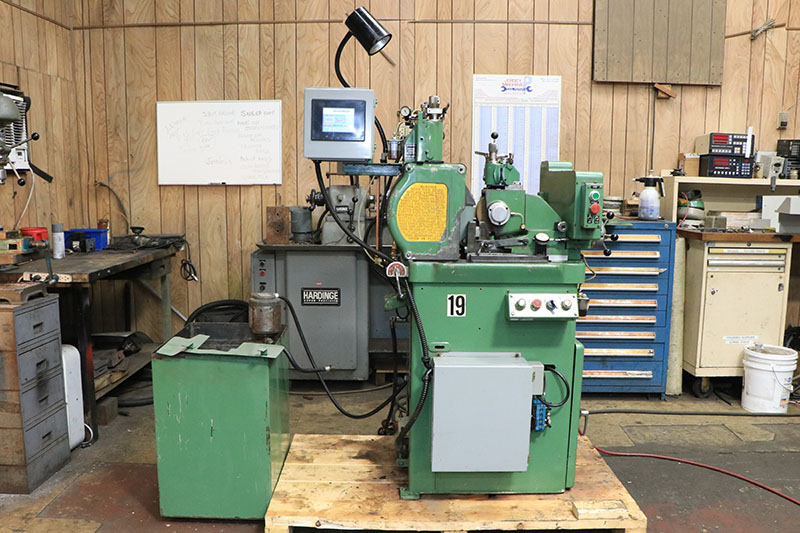

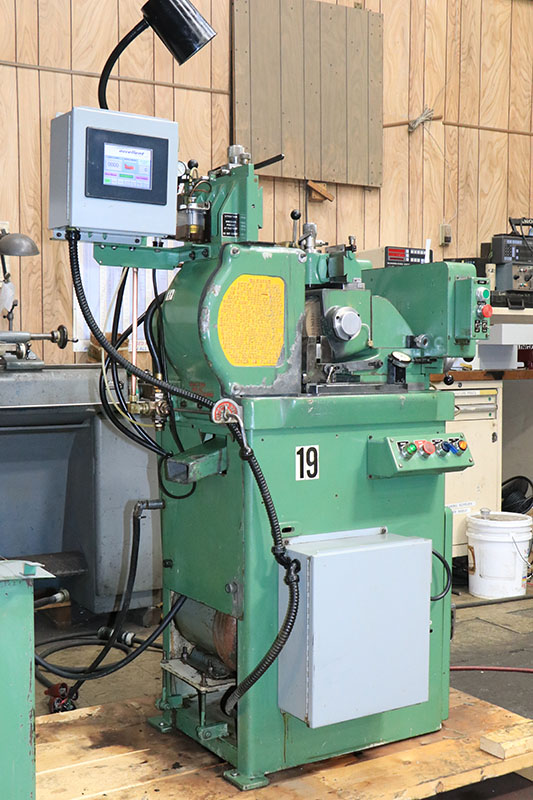

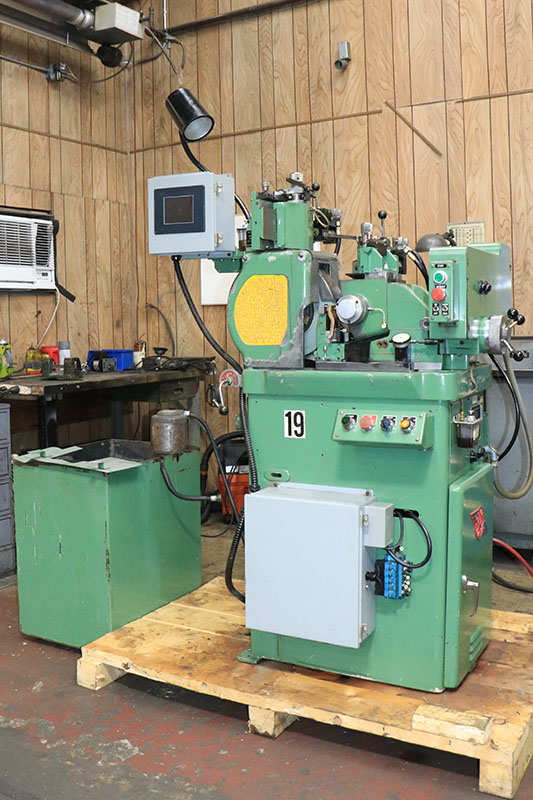

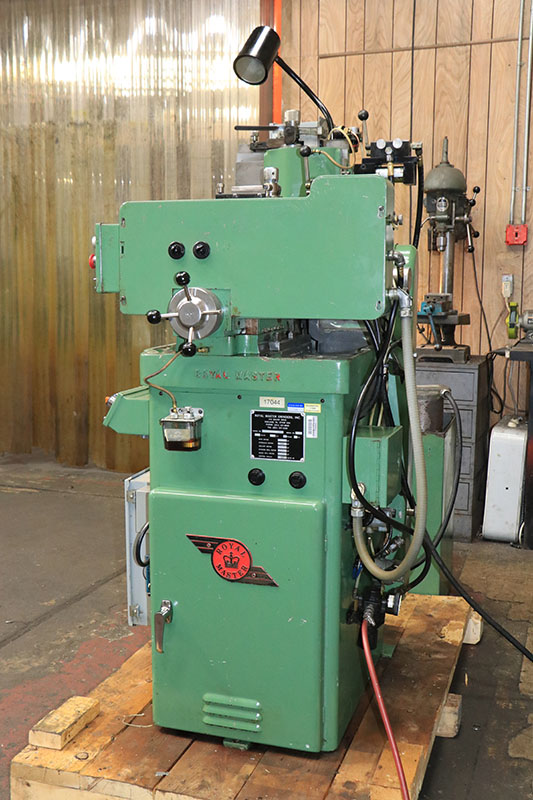

 ROYAL MASTER "HIGH-PRECISION" CENTERLESS GRINDER
       WITH AUTOMATIC CYCLE OPTION

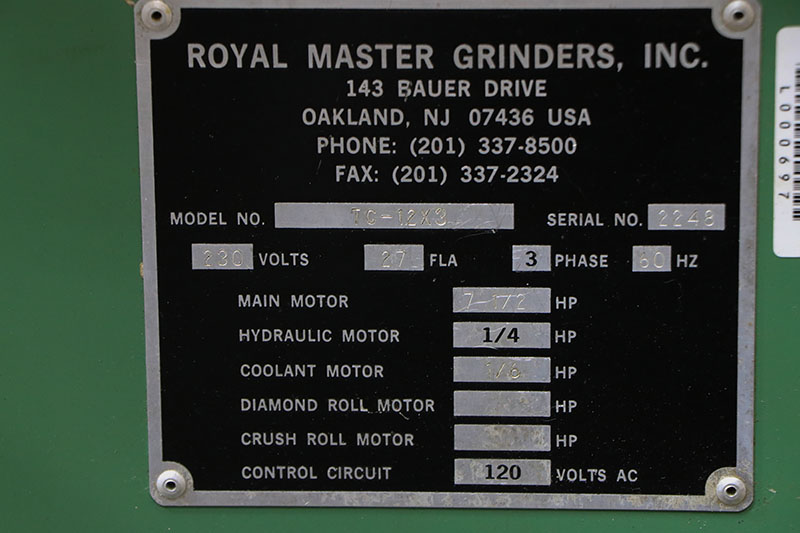

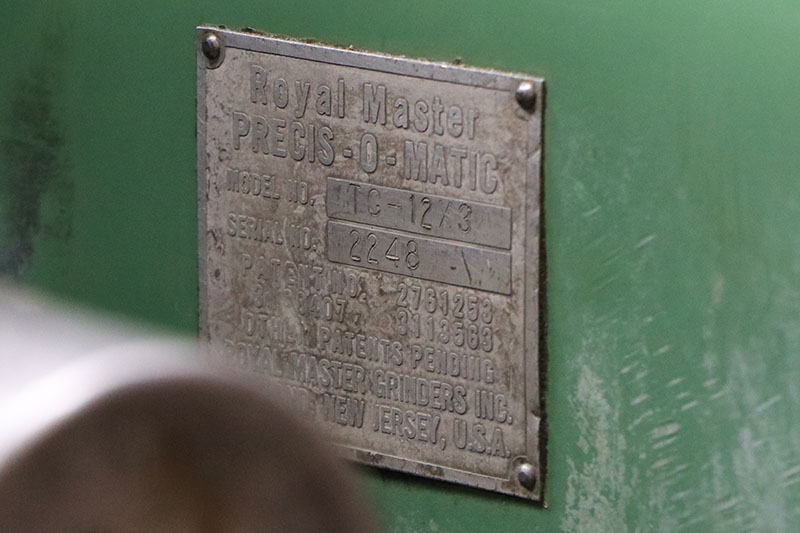

MODEL: TG12X3       S/N: 2248

REBUILT BY RMG IN 2015


  CAPACITY:
INFEED AND THRUFEED .......... 0.004" TO 1.5" DIA.
LENGTH ....................... 12' ON 0.5" DIA.

MAXIMUM GRINDING WHEEL ....... 12" DIA. X 3.5" WIDE
MINIMUM GRINDING WHEEL ....... 10" DIA. X 1/4" WIDE
MAXIMUM REGULATING WHEEL ..... 6" DIA. X 3.5" WIDE
MINIMUM REGULATING WHEEL ..... 1/4" WIDE W/SPOOL

SPINDLE SPEEDS:
GRINDING WHEEL ............... CONSTANT SPEED 2,040 RPM
REGULATING WHEEL ............. INF. VARIABLE 25 TO 480 RPM


REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR THRUFEED
GRINDING ......................... 6 DEGREES
MAX. SWIVEL FOR TAPER GRINDING ... 5 DEGREES

  APPROXIMATE FLOOR SPACE ........ 24" X 48"
APPROXIMATE WEIGHT ............... 2,800 LBS

  EQUIPPED WITH:

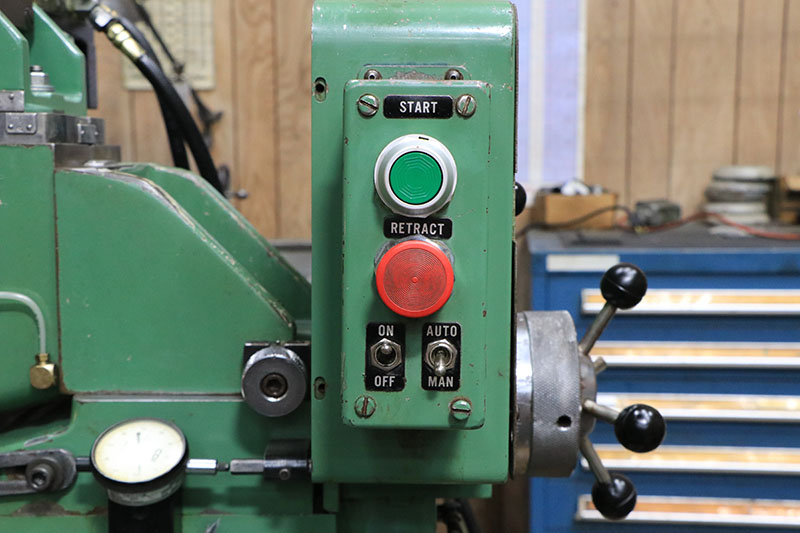

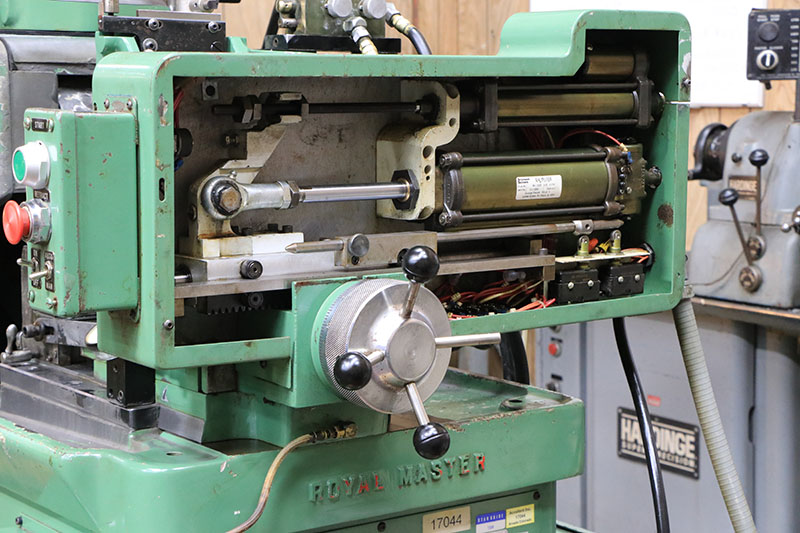

AUTOMATIC CYCLE OPTION .... PROVIDES AUTOMATIC INFEED
 OF THE REGULATING WHEEL
"PRECISION" REGULATING WHEEL SPINDLE

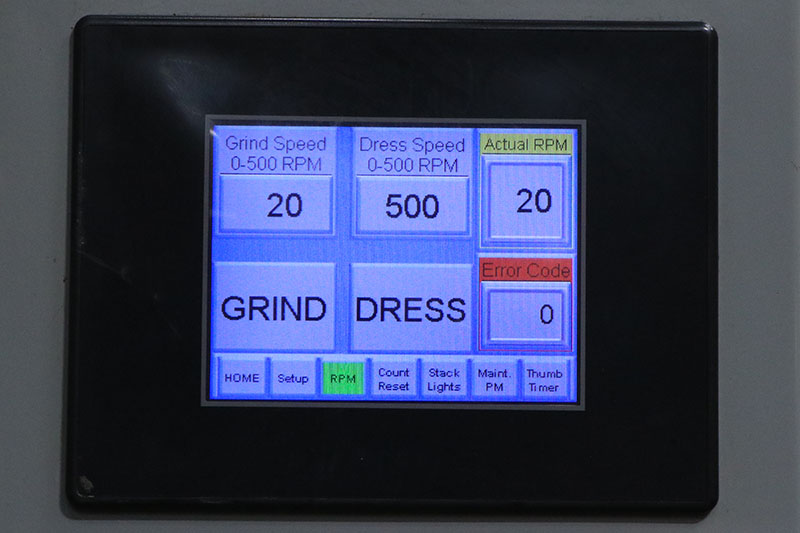

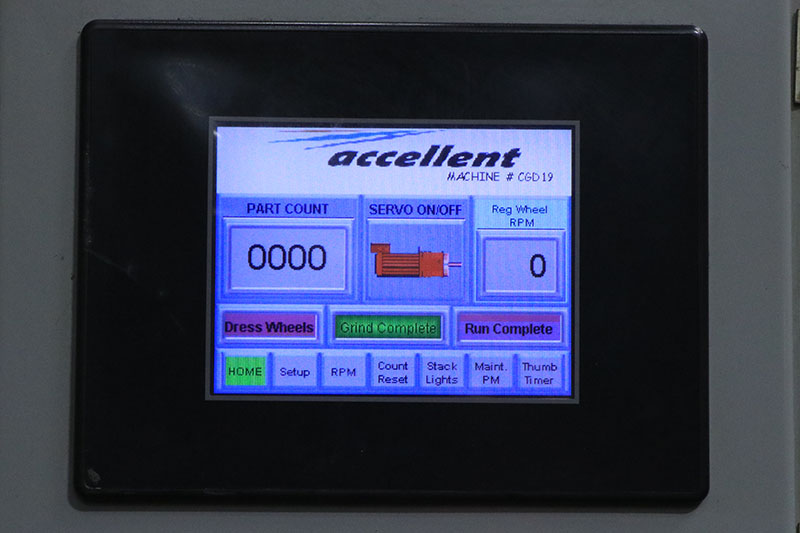

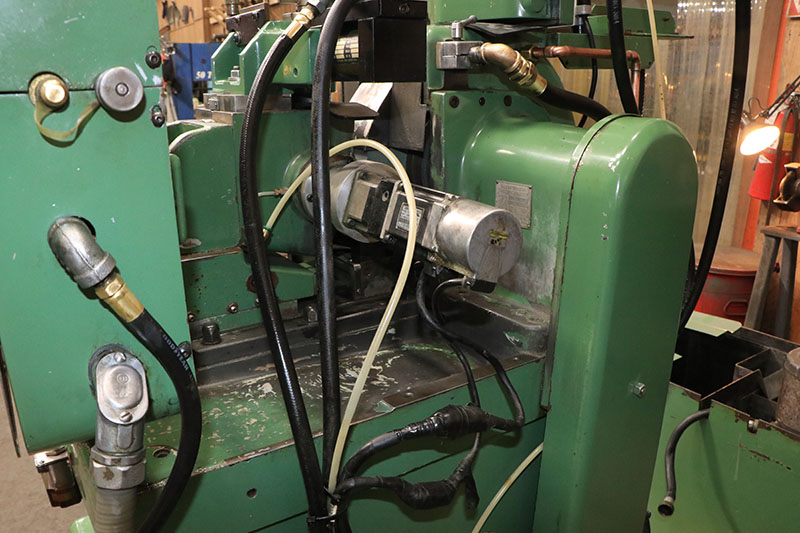

PARKER HANNIFAN SERVO DRIVE & DIGITAL CONTROL,
 PROVIDING FOR INFINITELY VARIABLE
 REGULATING WHEEL SPEEDS

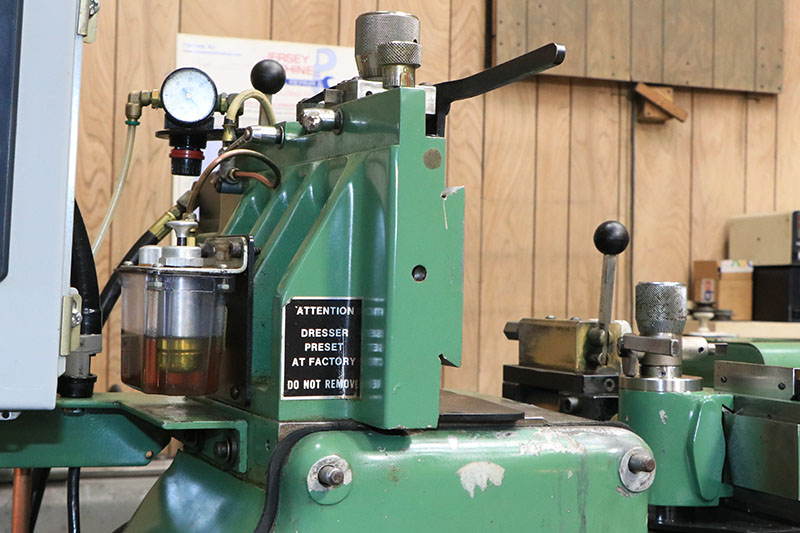

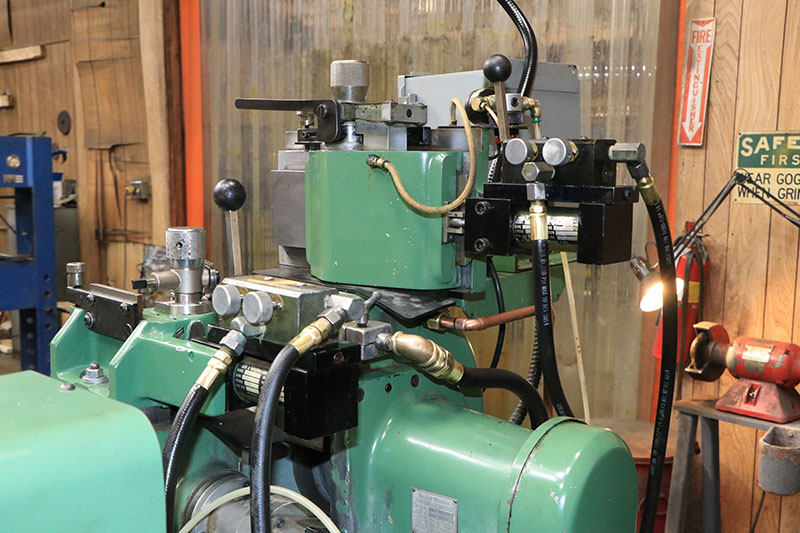

AIR-SENSING HYDRAULIC DRESSER FOR THE GRINDING WHEEL
HYDRAULIC DRESSER FOR THE REGULATING WHEEL

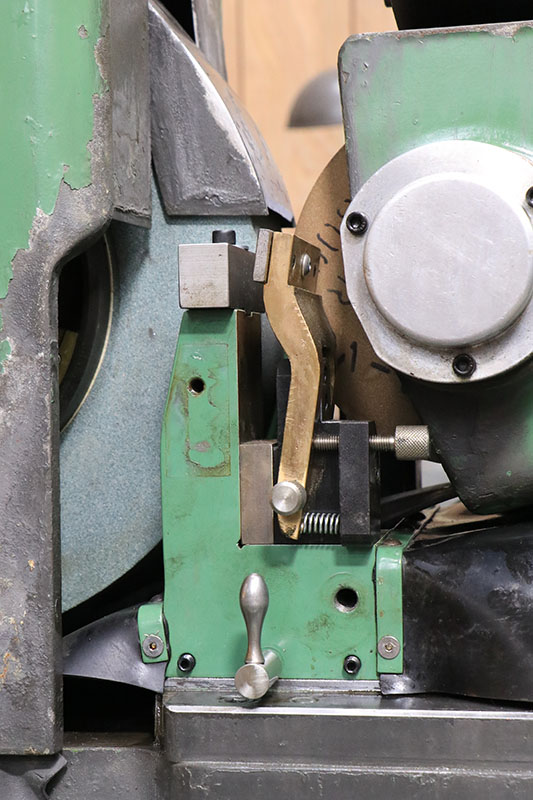

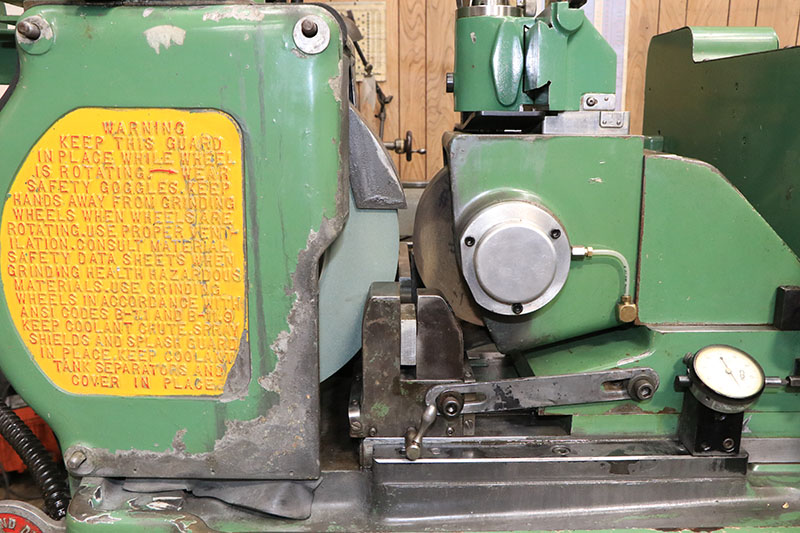

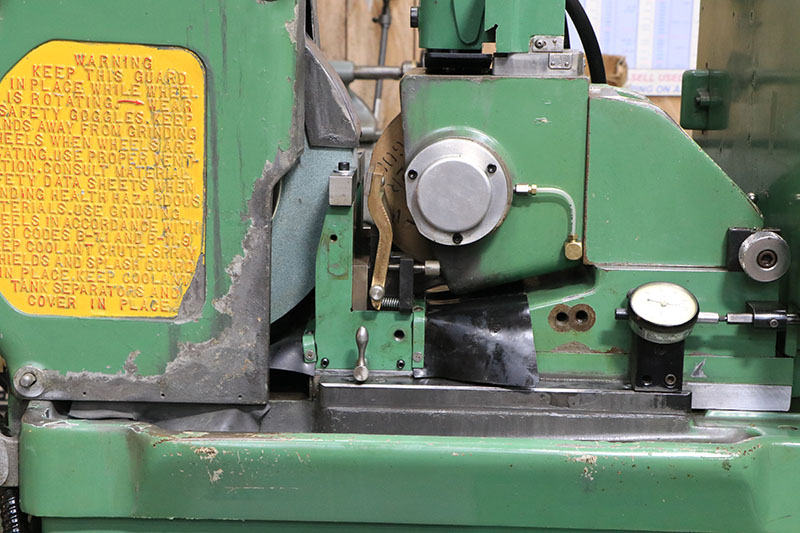

WORK REST WITH BLADES

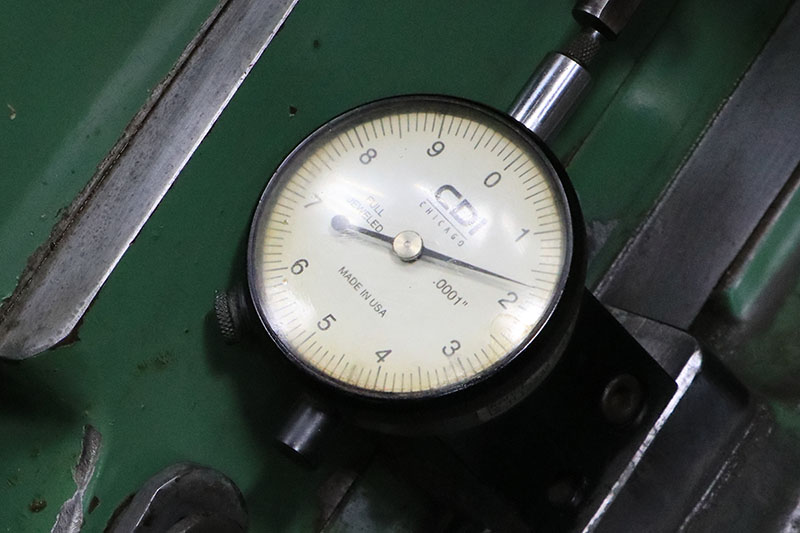

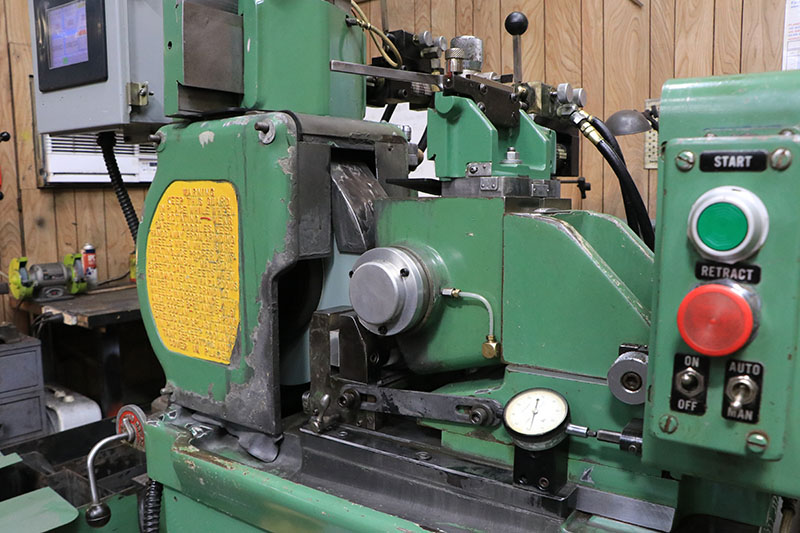

DIAL INDICATOR FOR REGULATING WHEEL MOVEMENT
DIGITAL TACHOMETER & AMPERE GAUGE, FOR VARIABLE SPEED
 DISPLAY OF THE REGULATING WHEEL SPEEDS

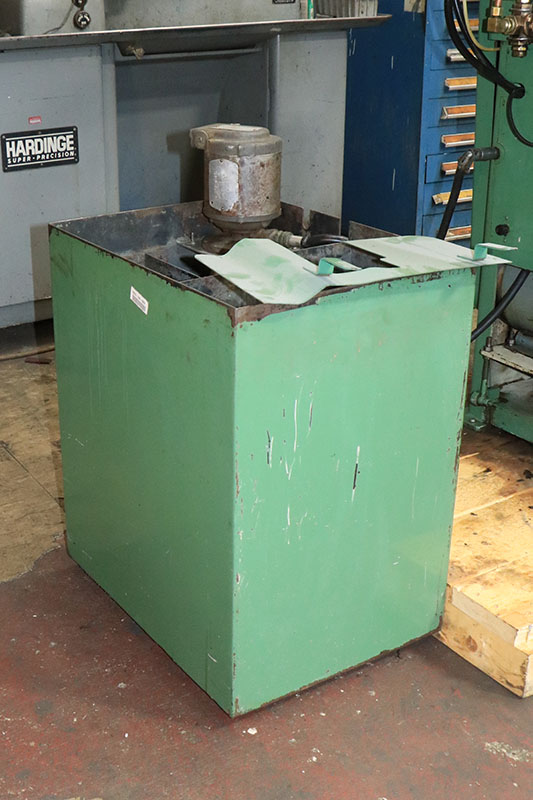

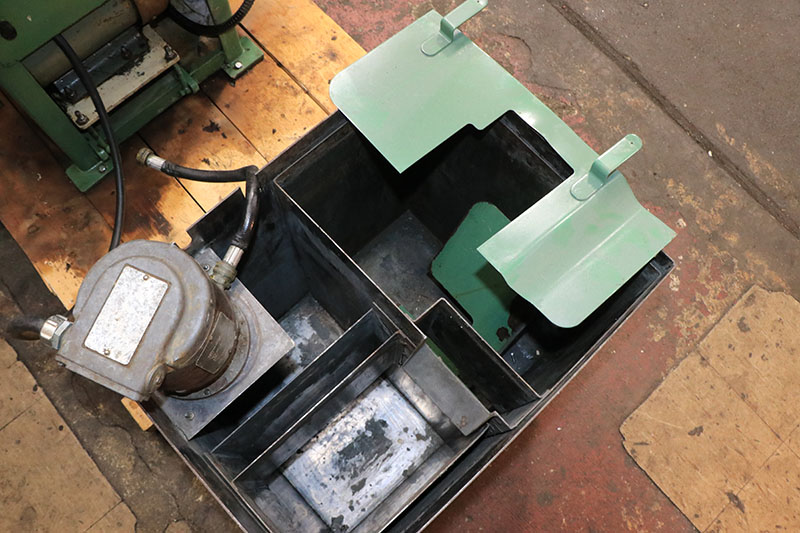

RMG COOLANT SYSTEM

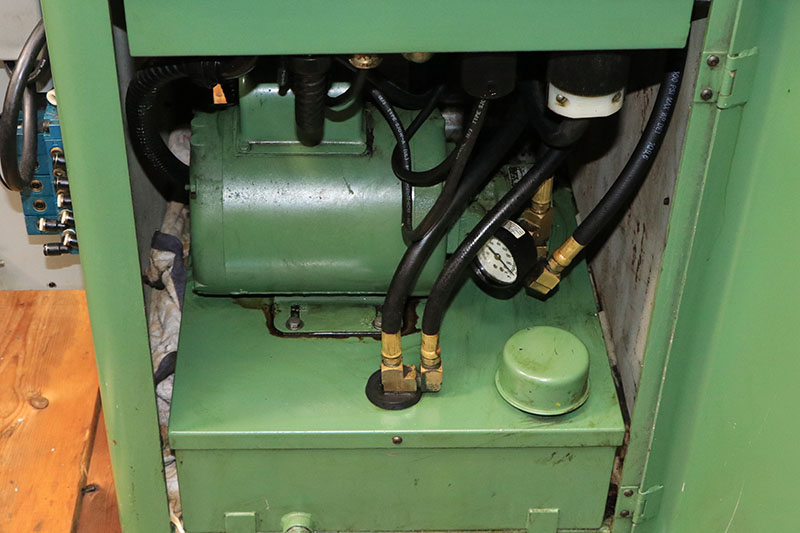

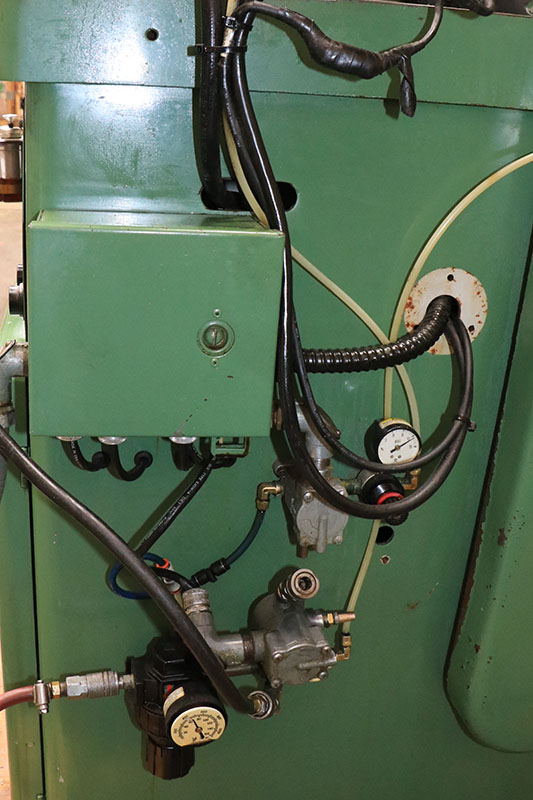

SELF CONTAINED HYDRAULIC SYSTEM
7.5 H.P. MAIN DRIVE MOTOR
3/60/208-230-460 VOLT ELECTRICS
WIRED PRESENTLY FOR 3/60/230 VOLTS, 27 FLA


** SUPERIOR, BEAUTIFUL CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT IN OUR HARRISON, NJ WAREHOUSE **

LINK TO VIDEO OF MACHINE UNDER POWER: https://youtu.be/l4QSOVDXwCU
