Supertec STC-1205NC CENTERLESS GRINDERS

Price on Request

Make:: Supertec

Model:: STC-1205NC

Year:: 2020

Ref #:: 167806

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

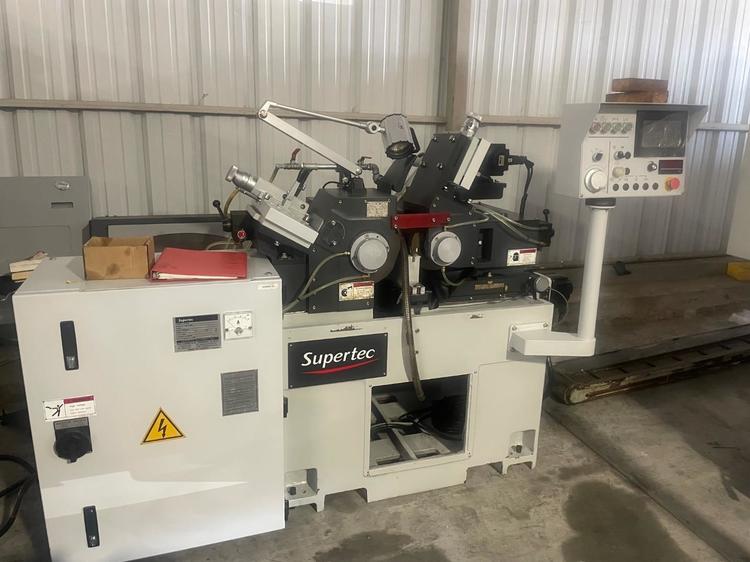

Supertec STC-1206NC Centerless Grinder, New in 2020


Specifications:

Work Capacity 2"
Grinding Wheel Dia. 12"
GW Power 10 hp
GW RPM 1,900 RPM
Regulating Wheel Dia 8"
RW RPM 310 RPM
Dimensions 89" x 77" x 72"
Weight 4,850 lbs

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:

Grinding Capacity
Work Diameter (Standard Workrest): 0.4" - 2"
Work Diameter (Special Workrest): 1.18" - 2"
Auto Infeed Increment: 0.0001-99.9999

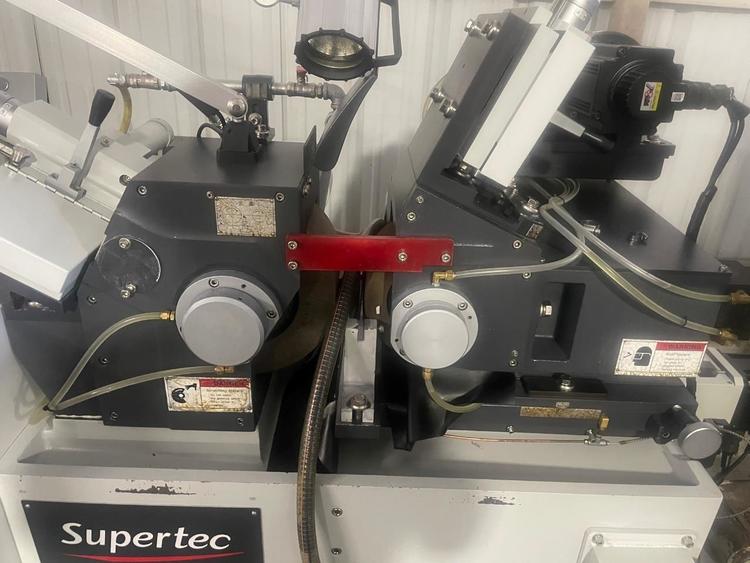

Grinding Wheel
Size: 12" x 6" x 5"
Spindle Speed: 1,900 RPM
Dressing Increment (Per Graduation/Revolution): 0.0005" / 0.05"

Regulating Wheel
Wheel Size: 8" x 6" x 3.5"
Spindle Speed (10 Steps): 15-310 RPM
Handwheel (Per Graduation/Revolution): 0.002" / 0.2"
Swiveling Angle: +5 Degrees
Inclining Angle: +5 ~ -3 Degrees
Dressing Increment (Per Graduation/Revolution): 0.0005" / 0.05"
Rapid Feed of Saddle Handwheel (Per Graduation/Revolution): 0.0025" / 0.25"
Micro Feeding of Scale Handwheel (Per Graduation/Revolution): 0.00005" / 0.005"

Motors
Grinding Wheel Motor: 7.5HP/10HP

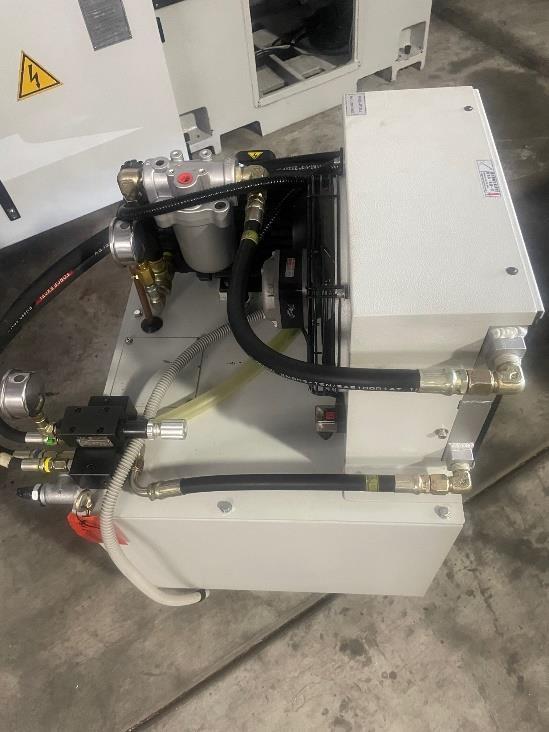

Hydraulic Motor: 1HP
Infeed Servo Motor (CII Model): 1kw

Machine Dimensions: 89" x 77" x 72"
Machine Weight: 4,850 lbs

 Equipped With:

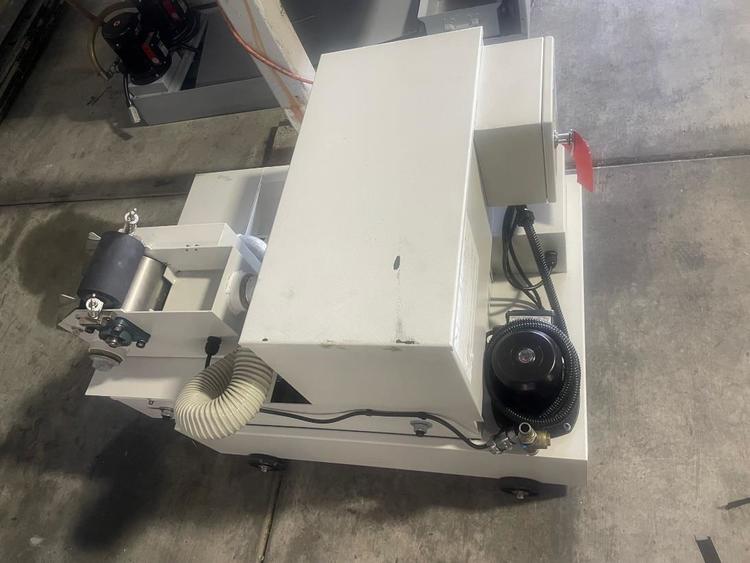

Coolant System with Magnetic Separator & Paper Filter
Input and Output Rail, Input Workrest
